360°RealWear Navigator 520
€2.545 excl. VAT
- Authorized RealWear Partner
- Hands-free monocular AR headset
- Improved display compared to the navigator 500
- Well suited for remote inspections
- Clients rate VR Expert a 9.3/10

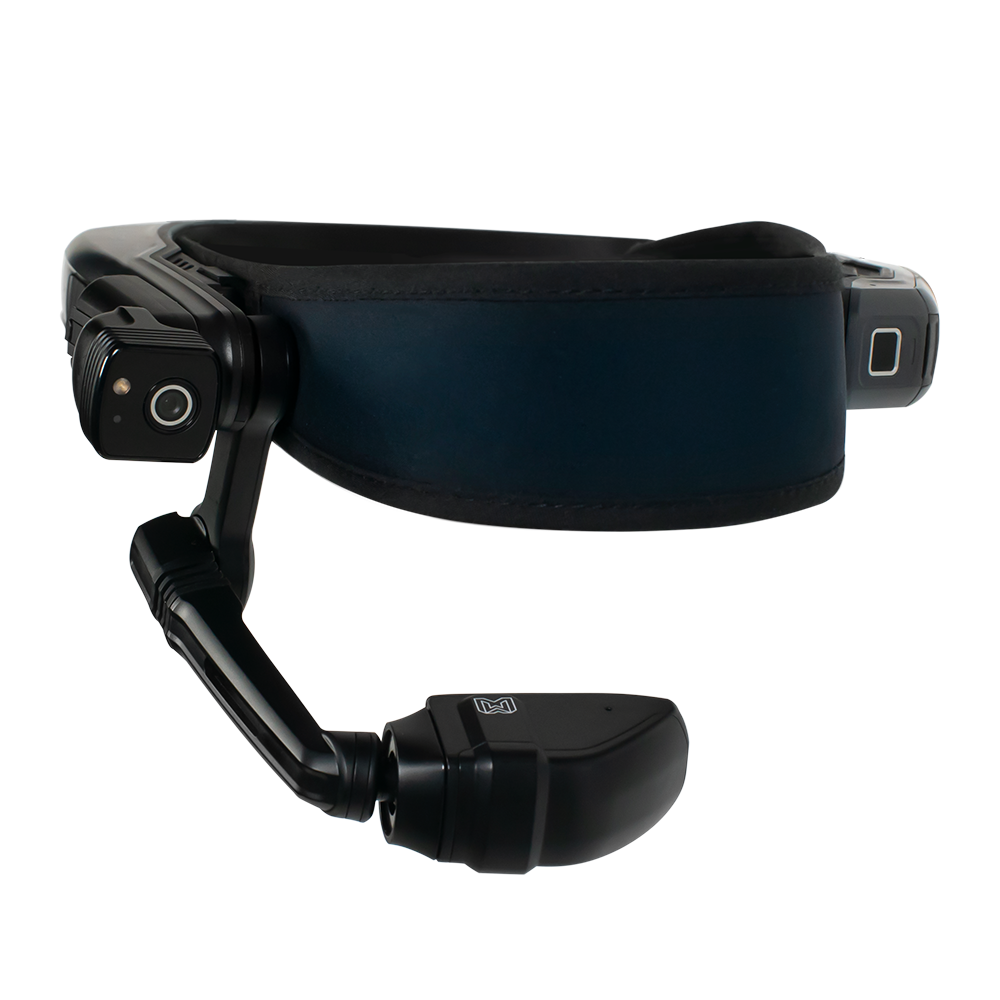

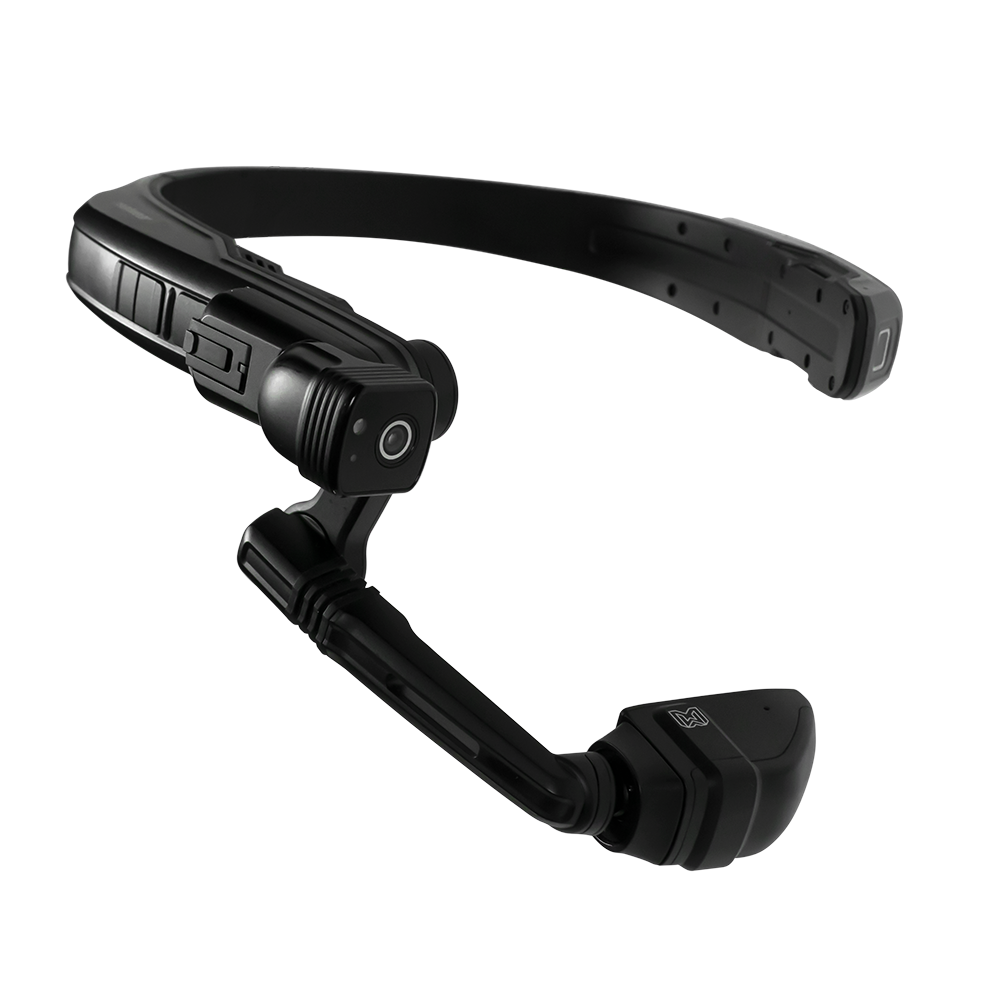

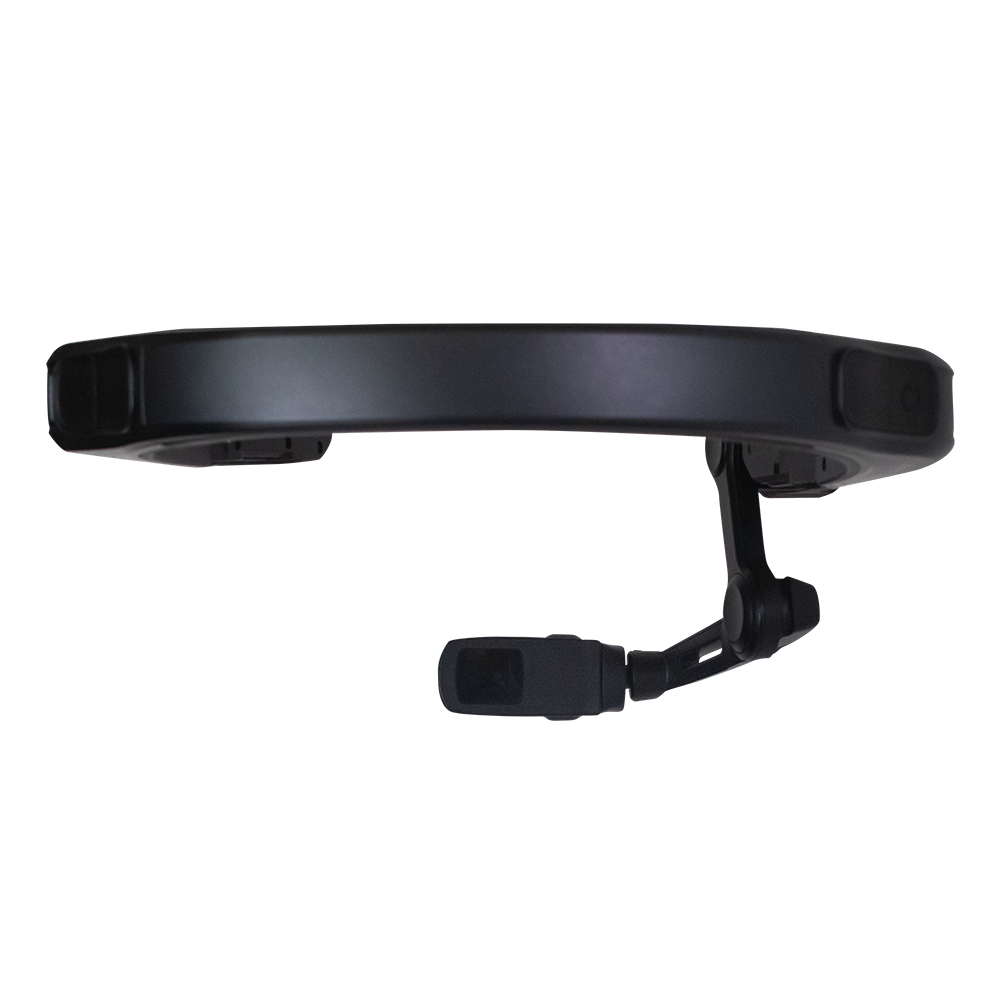

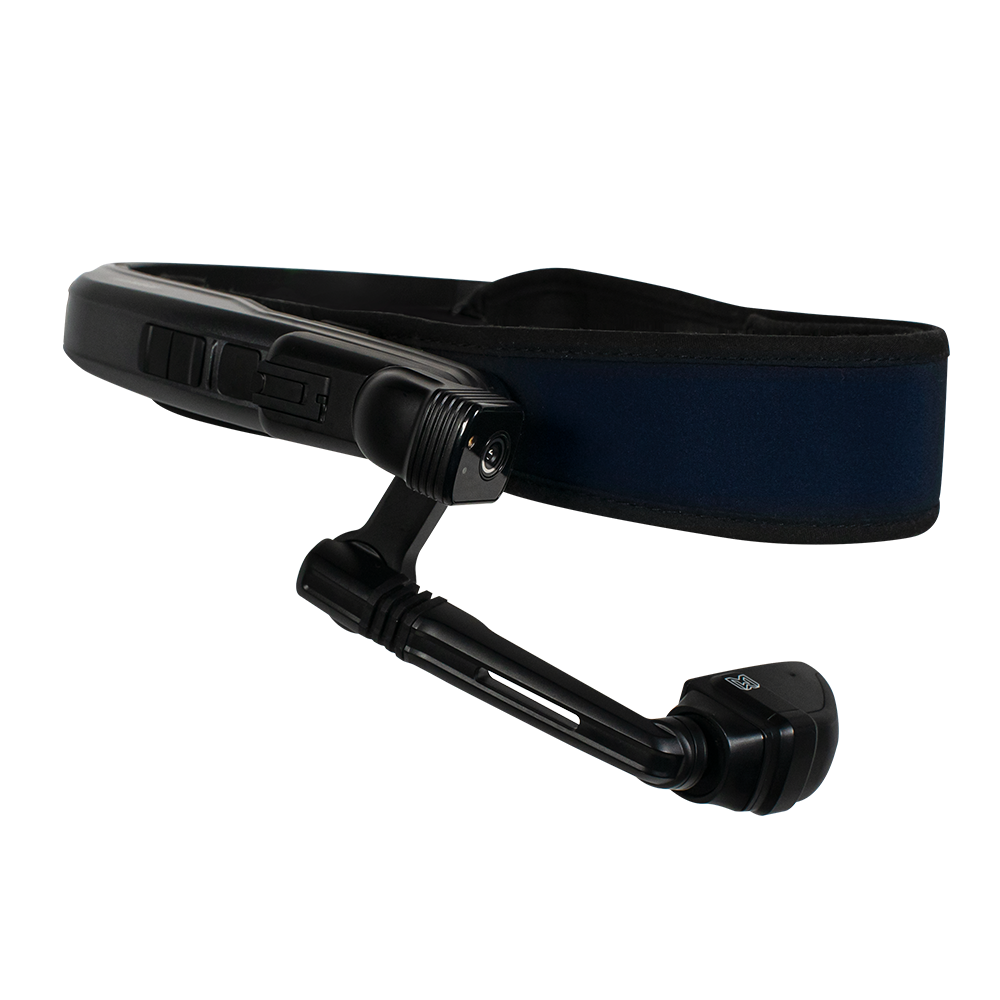

Product Information of RealWear Navigator 520

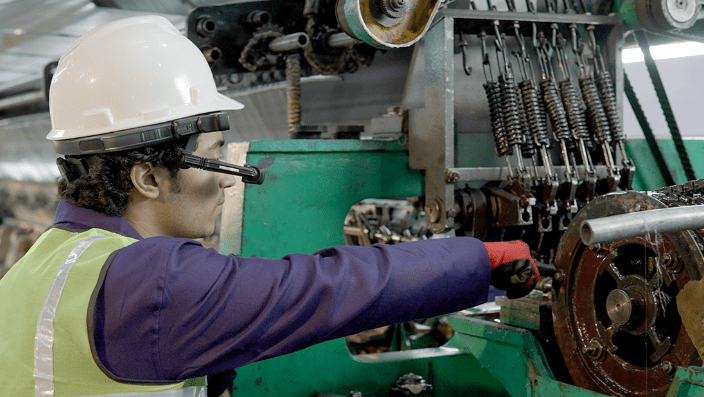

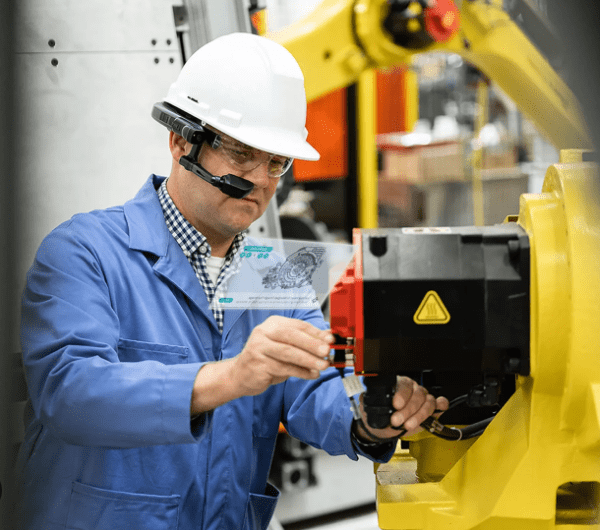

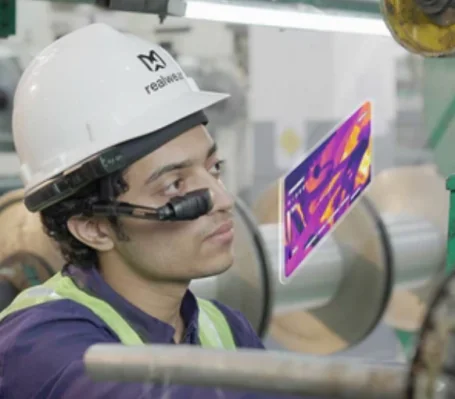

The RealWear Navigator 520 is the latest device in the RealWear Navigator 500 series and is a highly rugged monocular smart glass with an upgraded display over the Navigator 500. The Navigator 520 AR headset can be operated hands-free due to its industry-leading voice control. The Navigator 520 is best suited for use in inspections, maintenance and repairs with a remote expert.
Pros
- Full HD display
- 20% larger display than Navigator 500
- Excellent voice control
- Rugged design
- Noise cancellation up to 100db
- Easy adjustable display
- Workband included
- 48 MP camera
Cons
- No 4K video capture
- Voice control only
RealWear Navigator 520 has the following advantages:
First, the RealWear Navigator 520 is the first RealWear device to have a hyperdisplay, providing users with much better viewability. Compared to the standard Navigator 500 the Navigator 520 provides users with a 20% larger screen, without compromising on the user’s view of the real world. The Navigator 520s display is HD, providing a resolution of 1280 x 720 far superior to that of the Navigator 500. Because of the improvement in the display, users can see text, graphics and more in better detail.
The microphone and camera of the Navigator 520
Second, the Navigator 520 has a camera that can shoot pictures with a resolution of 48 MP. This makes it one of the best-suited AR headsets for remote expertise and maintenance because of this camera. Along with the photos it can capture the device also support 1080p video quality at 60 frames per second. This quality ensures high-resolution remote support can take place, allowing for sessions to be more effective saving time and resources.
Third, the RealWear Navigator 520 is built to be used hands-free thanks to its industry-leading voice-control technology. The voice control is so good on the Navigator 520 it can filter out external noise to levels up to 100db as well as understand the user in these same situations thanks to its noise-cancelling microphones. Along with this the Navigator 520 supports more than 12 languages natively.
Adjustable and robust
Fourth, the RealWear Navigator 520 is made to withstand use in the most challenging of conditions. Not only can it be dropped from 2 meters and remain functional, but it also has a number of safety certifications that make it safe for use in heavy industry. One of which is its IP66 certification, which makes the device capable of withstanding contact with heavy dust and water.

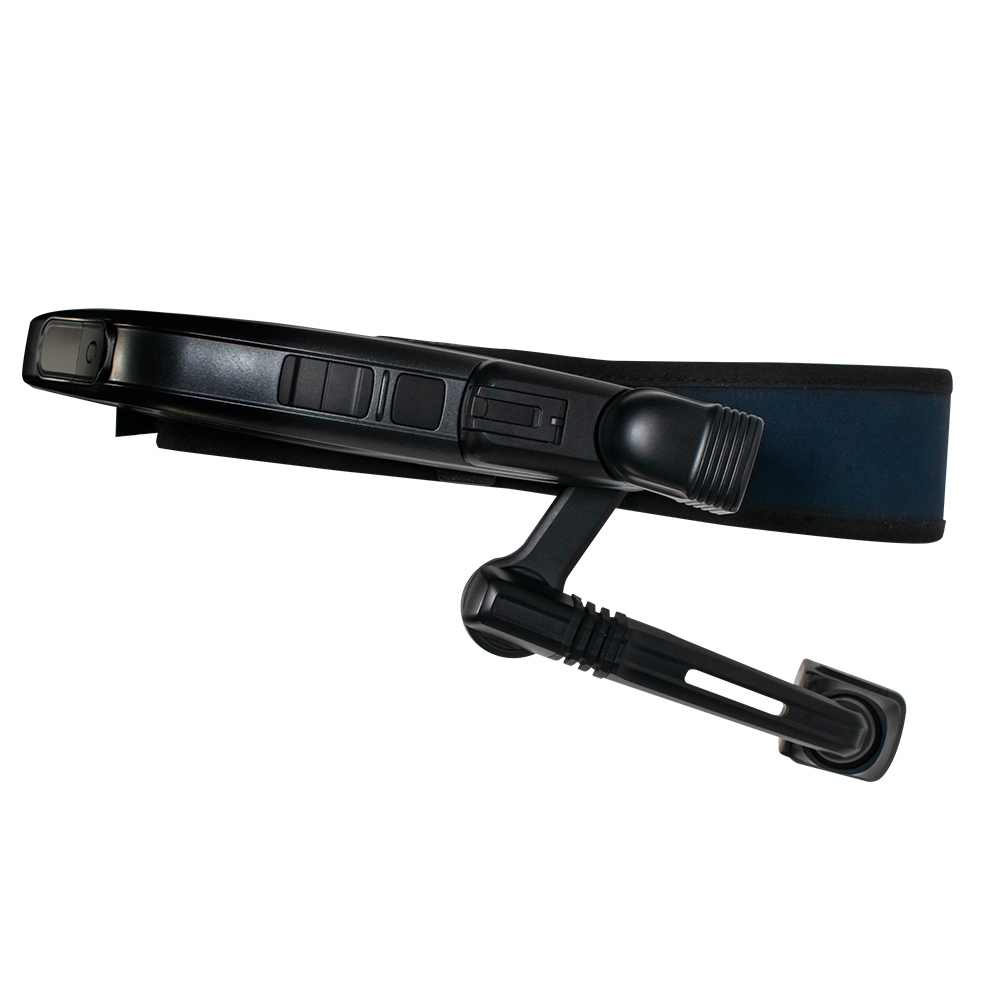

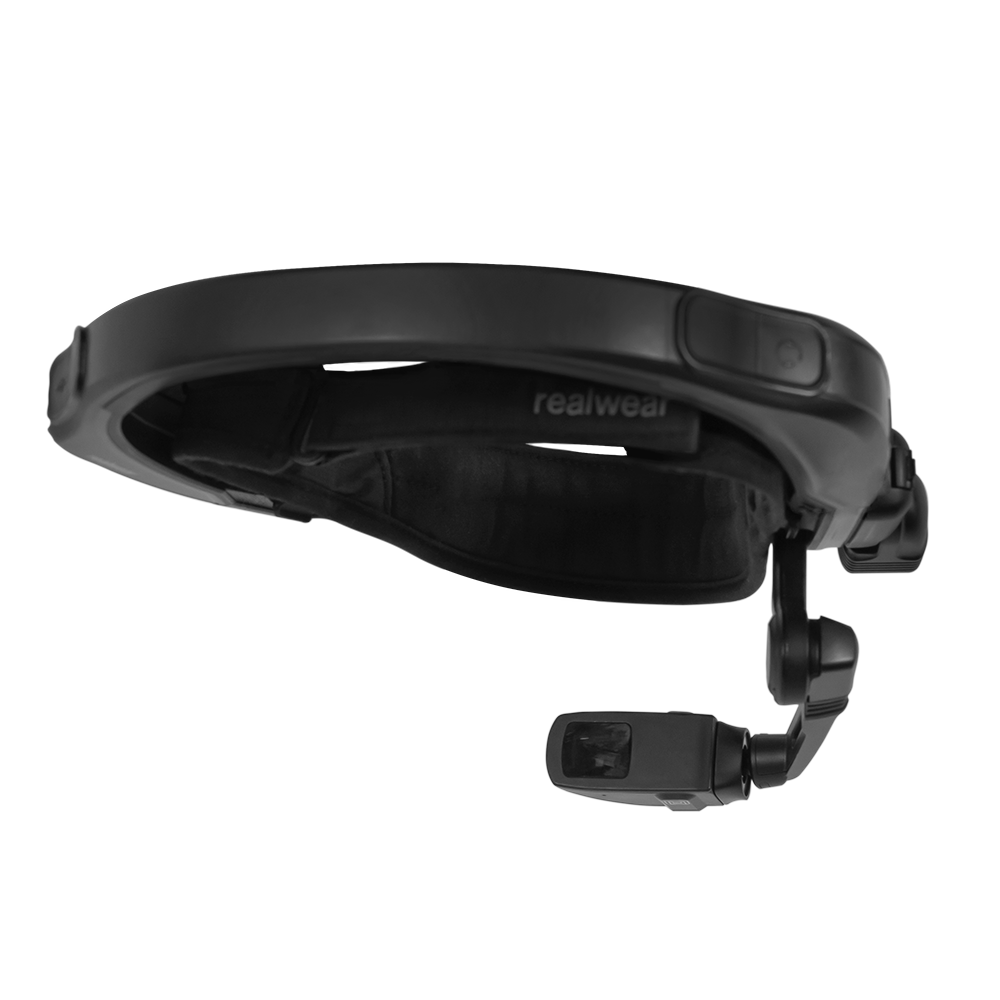

Fifth, the boom arm of the RealWear Navigator 520 is fully adjustable making it easy to be adapted to the user’s eye. This ensures that the screen fits perfectly with any head shape and allows the display to be seen clearly. Along with this the boom on the Navigator 520 provides more eye relief to that user compared to the standard Navigator 500 allowing users to place the display further from there eyes so users can see the screen more easily.
Product Specification
| Built-in display |  |  | Model | Navigator 520 | EAN Number | 602822748544 |
|---|---|---|---|---|---|---|
| Built-in audio | | | AR View | Monocular | Memory | 64GB / 4GB RAM |
| Stand alone | | | FOV (Horizontal) | 24 degrees | Battery | 2,600 mAh |
| Display | 1280x720 pixels | Battery life | Up to 8 hours | |||
| Weight | 274 grams | Controls | Voice, Gaze | |||
| Microphone | Yes (noise-cancelling up to 100db) | Operating system | Android 11 (AOSP) + WearHF hands-free interface | |||
| Connectivity | WiFi, Bluetooth, GPS, IMU | Chip | 2.0 GHz 8-core Qualcomm® SnapdragonTM 662 with Adreno 610 GPU - OpenGL® ES 3.2 & OpenCLTM 2.0 | |||
| Charging | USB-C | Compliances | CSA C1-D1, PPE support, IP66 (water and dust proof) | |||
| Camera | 48MP, 1080p 60fps video | Warranty | 1 year |
| Comes with: | ||||
|---|---|---|---|---|
 |  |  |  |  |
| 1x RealWear Navigator 520 | 1x USB-C 3.0 Cable | 1x Removable battery | 1x Workband + 1x Rear Head Pad | VR Expert Quickstart Guide |
